M100 Portable Valve Grinding Machine

Portable Valve Grinding Machine
Model Name : M100
Valve type: Safety Valve or Globe Valve
Seat Type : Conical Seat or Flat Seat
Power: 750KW
Made in China

EMAIL

M100 Portable Valve Grinding Machine


       The Caminix portable valve grinding machines are a patented design grinder that is a proven solution for on-site industrial valve reconditioning and maintenance.Repairing leaking valves in industrial pipelines is a laborious operation that involves extended downtime, production losses and substantial unwanted costs. Losses are minimized if the valves can be reground in situ, precluding the need to dismantle and remove defective valves from the pipeline. Available in overlapping sizes, these grinders combine unsurpassed versatility with exceptional ease of handling and operation. A combination guaranteed to give these grinders cutting edge performance, whatever the valve location.


        These valve grinding machines have unique, lightweight which allows rapid and accurate mounting for grinding valve seats or wedges. Operating checks and replacement of abrasive discs can be carried out without disturbing the assembly.

you can quickly change grinding disks and adjust the grind pressure,Solid construction, sealed lubrication and pre-loaded bearings ensure long life and low maintenance.




Specifications of M100 Safety valve & Globe Valve Girnding & lapping Machines


M100 SAFETY VALVE & GLOBE   VALVE

CONICAL SEAT GRINDING & LAPPING

Specifications

INCH

METER

Seat  Diameter

Range

60° 75° 90°

Φ1’’-Φ2 1/2’’

Φ1’’-Φ 6’’

60° 75° 90°

Φ20-Φ65

Φ20-Φ165

Submerging Depth

10 inch

250mm

Valve Type

Safety Valve  or  Globe   Valve

Power Option

Electric  or  Pneumatic

Power

750KW

Approx Weight

23.5KG

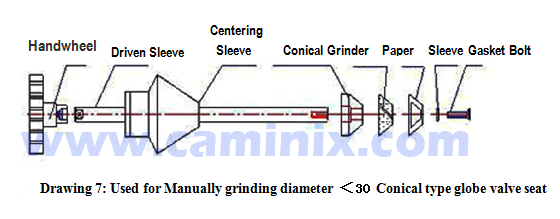

Below is the installation method drawing



For more information, please contact sales@caminix.com.
