Ball Valve Spherical Turning Lathe CNC

Ball Valve Spherical Turning Lathe CNC

EMAIL

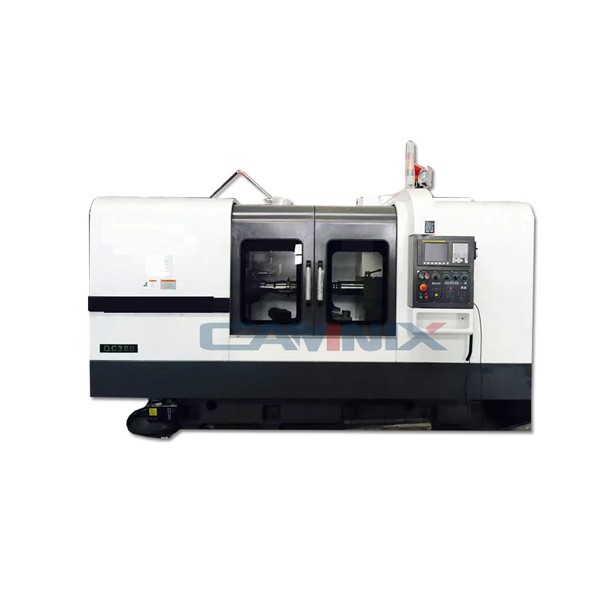

CAMINIX SPHERICAL GRINDING MACHINE QC380

Item

Unit

Specification

QC380

Sphere Outside Diameter

mm

Φ380~φ490

Sphere Inner Diameter

Inch

8″­­~12″

Distance between the apex to the table

mm

300

Max Sphere Weight

Kg

300Kg

Spindle Motor Power

KW

15Kw

Spindle Speed

Rpm

100360

Feed in Motor Power

KW

0.75/2.0

Quick Feed in Speed

Rpm

10m/min

X/Z Travel

mm

300/150

Sleeve Travel Range

mm

200

Tailstock Apex


6#

X/Z Axis Position Precision

mm

0.02

X/Z Axis Single Direction Re-

Position Precision

mm

0.01

Sphere Roughness after Turning

Ra

1.6

Sphere Roundness after Truning

mm

0.04

Approx Overall Dimension

(L*W*H)

mm

3200×2000×1800

Approx Net Weight

Kg

4500

Please contact Caminix for more information.


Work Piece Sample

Ball Valve Balls

Appliable Ball Types:

As per Ball Materials:      Casting Valve Balls, Forged Valve Balls,

As per Ball Structure :     Hollow Valve Balls, Solid Valve Balls,
As per Ball Design:          Floating Valve Balls, Trunnion Valve Balls, Stem Valve Balls,V Port Valve Balls (Segement Balls),

                                           T Port Valve Balls, L Port Valve Balls, F Port Valve Balls, X-Port Valve Balls,
                                            L-STEM, X-STEM, T-STEM, Double Slot T Port, Special Slot, F Port Three Ways,
                                            Three Way Valve Balls, Hexangular Valve Balls, Hemi Valve Balls,
                                            Plate Balls, Metal Seat Valve Balls and Seats,
AS per coating materials : TCC Valve Ball, HVOF Valve Ball, Chrome Valve Ball, Stetllite Valve Ball


Grinding Ball Size: 1/2''-60'' Class 150~Class 2500 PN10-PN420

Base Material:  Carbon Steel, Stainless Steel, Alloy Steel

 ASTM A105, ASTM A350 LF2, ASTM A182 F304, ASTM A182 F316,ASTM A182 F304L, ASTM A182 F316L,ASTM A182 F6A,

ASTM A182 F51, ASTM A182 F53,ASTM A564 630(17-4PH) Inconel 625,Inconel 690,Inconel 617,Inconel 718,Model 1400 etc

Coating Materials:

Coating: Nitridation,Nickel Plate,Chrome Plating,HVOF Tungsten Carbide,Spray Stellite,Spray Nickel Alloy,Spray Cobalt Alloy NI60,NI55 Inconel  etc


  If you need any more information, please feel free to contact Caminix.
